Stepper motor hook up

How do I connect a stepper motor to a pre-made cable?

Buildbotics provides pre-made cables that connect to the driver outputs on one end. These cables are color coded such that the A+ wire is red, the A- wire is black, the B+ wire is yellow, and the B- wire is purple. Connecting 4-wire stepper motors requires connecting A+ and A- to one of the motor coils and B+ and B- to the other motor coil.

How many wires does a stepper motor have?

Different stepper motors can have different amounts of wires, typically 4, 5, 6, or 8 wires. A 4-wire arrangement is only able to support bipolar stepper motors, since there is no central wire available.

How do I connect a stepper motor to a buildbotics CNC controller?

The Buildbotics CNC Controller provides four bipolar stepper motor drivers. It cannot drive unipolar stepper motors. Fortunately, most stepper motors can be wired up as bipolar motors. Connecting a stepper motor to a Buildbotics CNC Controller requires properly connecting the four wires from the driver to the right wires on the motor.

How to connect a stepper motor to arudino?

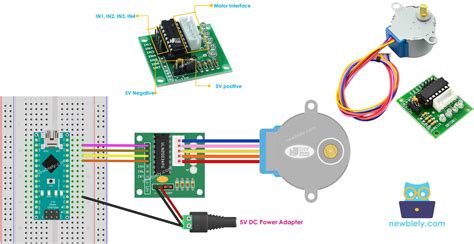

Because stepper consumes quite a lot of current,you need to connect this driver to the external power supply and NOT on the arduino!! Youre doing great! Now you just need 4 wires and with them connect driver shield to arudino,on arudino i selected ports 8,9,10,11,but you can use other ports too!

How do you wire a meter to a stepper motor?

With your meter, divide the wires into sets of three that have continuity to each other, next identify the center taps. If you are connecting to a unipolar driver use all six of the stepper motor wires.

How do you connect a stepper motor to a bipolar driver?

To begin, if your stepper motor only has four wires, this means it can only be used with a bipolar driver. You will notice each of the two phase windings has a pair of wires, use your meter to identify the wires. Find the wires that have the continuity between them and connect these to the stepper motor.

Can I connect a stepper motor to a CNC CNC controller?

Fortunately, most stepper motors can be wired up as bipolar motors. Connecting a stepper motor to a Buildbotics CNC Controller requires properly connecting the four wires from the driver to the right wires on the motor.

Are stepper motor cables shielded?

Cables that have high voltages in them such as motor power and servo drive cables are shielded. When I was using 5v for signals then I had absolutely everything shielded. I have control cabinets on all my machines and that is where the shields are connected. Re: Stepper Motor Cables - Shielded or Not? to the stepper and do what Hood mentioned.

How to connect a stepper motor to Arduino?

Connect Stepper Motor to Arduino. Step 1: Connect Your Stepper to the Driver. In this step you need to connect the wires from stepper to the driver.Most steppers have 6 wires,three for ... Step 2: Now Connect the Driver With Arduino. Step 3: Almost Finish! Just a Bit of Programing... Be the First to ...

How many steps does a stepper motor have?

The motor used in this tutorial has 32 steps and is connected to a reduction gear with a ratio of 1:16, so the number of steps for one revolution is 513. Now that we have the number of steps defined, we need to create a stepper motor object.

How do I use the stepper motor library?

To use the stepper motor library we first need to include the stepper library header: The next step (which is optional but recommended), is to define the number of steps you want the motor to rotate in one complete revolution.

Will all stepper motors work with l298n?

Not all stepper motors will work! The L298N operating voltage is between 4.8 and 46 volts (max 35 V when mounted on the breakout board). Since the driver can supply a maximum of 2 amperes per channel, you need to find a stepper motor that can be used in this voltage range and doesn’t exceed the maximum current rating.
