Hook up 2 lights one switch

How do you hook up multiple lights to a single switch?

7 / 12. Basically the simplest way to have multiple lights on one switch is to run a power supply wire to the switch first. This would be a two wire cable (black, white, ground) take the black wire and connect it to one screw on the switch and connect the ground wire to a screw inside the electrical switch box mounted to the wall.

How do you connect a light switch to an electrical box?

Connect the black wire from it to the other screw on the switch and the ground wire to the box as before. Now take both white wires and connect them with a marrette wire connecter and fold them into the back of the electrical box out of the way. This will complete your switch connection.

How do you wire a 3 way switch to a light?

Splice the white wires together and make pigtails of the ground wires and connect one to each switch. You can connect as many switches as you want in this way, up to the limit of the circuit. A three-way switch is one that works in conjunction with another three-way switch to power the same light.

Can you wire two light switches with one power supply?

You can wire two light switches with one power supply. Its common to power two or more light switches from a single power supply, and the switches can be in the same electrical box or different parts of the house. The power source is typically the buildings main electrical panel.

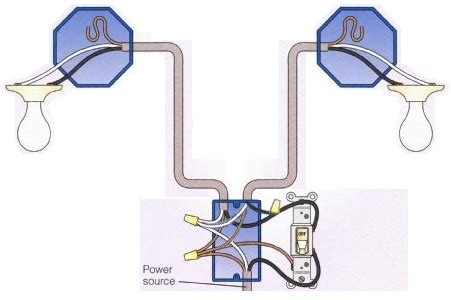

How do I connect two lights to one switch?

Run your cable from the first light to the second light. Connect the black wire from the switch to the black wire from the first light and the black wire coming from the second light.

How do you connect a light switch to an electrical box?

Connect the black wire from it to the other screw on the switch and the ground wire to the box as before. Now take both white wires and connect them with a marrette wire connecter and fold them into the back of the electrical box out of the way. This will complete your switch connection.

How many wires do I need to hook up a light switch?

This will complete your switch connection. Now for all light locations run a two wire cable from one location to the next,this should give you two, two wire cables at every light location except the very last one, it should have only one two wire cable.

How do you connect a black wire to a light switch?

You connect the black wire to the switch. You connect the 2 white wires together, and then connect the other terminal on the switch to the black wire of the cable leaving this junction box towards the first light. The ground wire should also be connected together in this manner, but to the ground terminal on the switch.

How to wire two light switches from one power source?

How to Wire Two Light Switches from One Power Source Step 1 - Turn the Power Off Step 2 - Run the Cable Step 3 - Connect the Wires Step 4 - Cut and Strip Step 5 - Twist Together Step 6 - Attach White Wires Step 7 - Attach the Black Wires Topics:

How do you connect two electrical switches together?

If the switches are in the same box, connect the ground terminals with one 6-inch wire and twist that wire together with the other two. Twist all the white wires in each electrical box together and cap them. Although you dont need to cap ground wires, screwing on a cap will hold them together more securely.

How do you connect two light fixtures together?

Connect the light fixtures by wiring their black wires to the black cable wire, their white wires to the white cable wire and their ground wires to the bare cable wire. Twist wires that youre joining together with pliers and screw a wire cap onto each set.

Can you split a circuit to power two lights?

A single circuit wire can split to power several loads, including receptacles, although mixing receptacles and lights on a single circuit is a practice thats going out of style. Two light switches connected to the same power source can control a single light fixture too.
